Kit - Subaru 3-gauge
This kit desinged to run the gauges above. These are the USA (USDM) spec that came on the Subaru GC/GF series. This kit will drive a 3-gauge cluster of white faced (or black faced) Lamco gauges for volt-temp-boost mounted on the dash in a pod above the air conditioner center vents or. Another common mount point is in a DIN in the center console above/below the radio.
Sensor and harness kit
The kit below contains everything you need to get bare gauges running. No OEM wiring is used. Kit includes sensor, engine block adapter, heat shielded sensor wiring with plug installed, and a main harness with labelled gauge plugs.
Kit contents
1 x AEM temperature sensor (AEM 30-2012)
1 x ProSport 1/8NPT oil gallery plug
1 x 3m sensor wire loom with sensor plug installed, insulated with fibreglass shielding (650C rated)
1 x 700mm custom harness with labelled gauge plugs
Installation

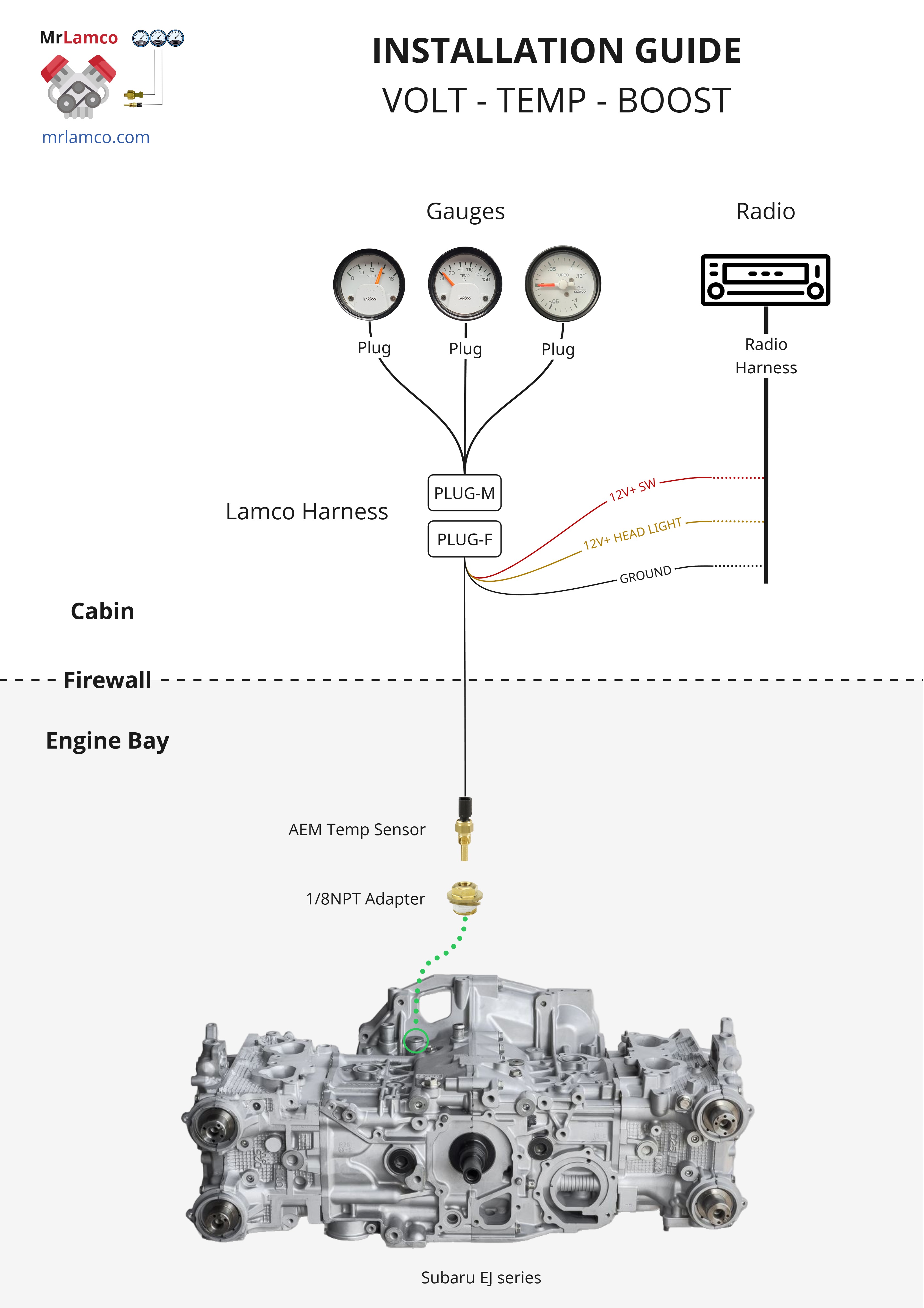

A simplified visual guide below shows the recommended setup. The harness is plug-and-play and is separated into two halves: sensor side, and gauge side, which are joined by a Deutsch DTM connector. Notably, 3 bare wires require connection to power everything up. These are labelled and are: 12V+ switched, 12V+ headlight, ground and these lines can patched in from the radio harness.
.jpg)
Step by step installation guide (print ready) available for download here.
Quality Assurance
I hand assemble and test each kit thoroughly before shipping. This includes bench testing the entire kit end-end from sensor to gauge pins. I record these test videos and provide a personal video overview to each and every customer, along with build photos.
Price
The complete sensor and harness kit (excluding gauges) is typically $300 USD + postage. The final price depends on the country and currency and I try to absorb shipping costs into the price if I can.
Payment and Shipping
I have a business Paypal account, facilitating easy payment with buyer protection, which is the most preferred method. I also have a WISE account (formerly TransferWise) with bank accounts in most currencies. Build time is usually 3 days and shipping via tracked international courier is typically 3-10 business days.
What is the process to get a kit? (I'll quote first to ensure you get the right kit)
To ensure you get the right kit for your car, I don't sell directly via the website. Instead I use a quote-order process where you contact me (via the contact button below) and provide details of your setup. Once I have your details I can email you a quote with a final price including shipping to your door. The quote contains options for payment via Paypal (with buyer protection) if you decide to proceed.
